Industrial Hose

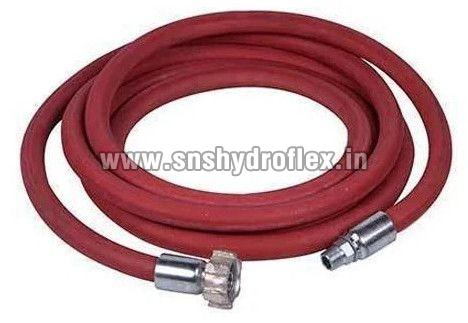

− Inner tube - Black colour, EPDM rubber resistant to high temperature

stream

− Reinforcement - High tensile synthetic textile cords with steel wire helix

− Cover - Red colour, EPDM rubber resistance to heat and weather

− Application - For conveying steam

− Temperature Range : Continuous: -40°C to +232°C

− Size Range: 1⁄2” to 2” & bigger sizes on request

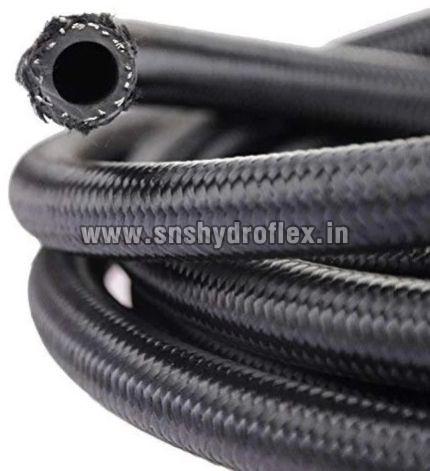

− Inner tube - Plasticized PVC, Rubber

− Reinforcement - Single braid of Synthetic fibre

− Cover - Abrasion resistant thermo-compound, Rubber

− Application – As Utility in process Industries, Fertilizer plants etc

− Temperature Range : -10°C to +80°C

− Size Range: 1⁄2” to 2” & bigger sizes on request

Chemical Rubber Hose / Composite Hose / XLPE

− Construction: Rubber / Composite

− Applicaton : Transfer of various acids and alkaline

− Temperature Range : ConƟnuous: -30°C to +80°C

− Size Range: 1⁄2” to 2” & bigger sizes on request

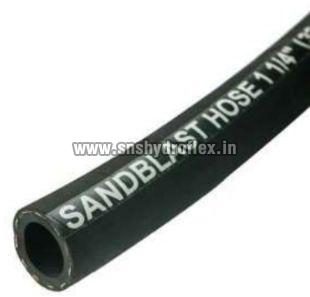

− Inner tube - Black colour, Synthetic and natural rubber blend resistant to abrasion

− Reinforcement - Plies of synthetic textile cords with two cross antistatic copper wires

− Cover - Black colour, Synthetic rubber resistant to ozone, weather and abrasion

− Application - Suitably designed long lasting heavy duty hose for use in sand, metal

grits and foundry waste with conductive rubber compound to ensure static electricity

dissipation abrasion loss of the tube according to ISO 4649: 50+5mm3

− Temperature Range : Continuous: -30°C to +70°C

− Size Range: 1⁄2” to 2” & bigger sizes on request

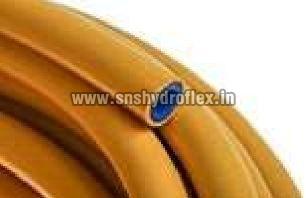

− Inner tube - Black colour, synthetic rubber resistant to air.

− Reinforcement - Single steel wire braid

− Cover -synthetic rubber resistant to weather, abrasion & ozone.

− Application - Compressed air service in severe working conditions in mines, quarries

and industrial applications

− Temperature Range : Continuous: -40°C to +90°C
